New family of HyperDeck Studio recorders allow broadcasters to record broadcast quality H.264, Apple ProRes and DNx video files to SD cards or SSD media.
Blackmagic Design has announced a new family of HyperDeck Studio models that feature better design, upgraded codecs and support for more media types. All models now support record and playback to H.264, ProRes and DNx files, as well as PCM or AAC audio. Plus all models support SD cards and UHS-II cards, with the Pro models adding extra SSD support.
HyperDeck Studio is available immediately from Blackmagic Design resellers worldwide for US$495.
HyperDeck Studio allows customers to record broadcast-quality video files directly onto SD cards and SSD media. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files. For ISO recording, there’s even built-in timecode and reference generators for syncing multiple units.
The HyperDeck Studio recorders have new broadcast-style front panel controls and more connections on the rear panel.

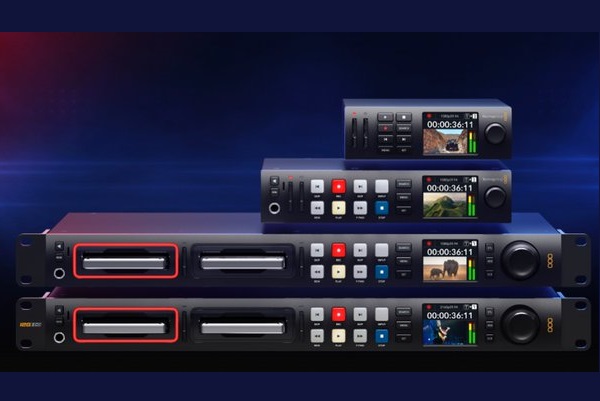

There are four different models of HyperDeck Studio, suitable for all types of work. The 3G-SDI based HD Mini model records and plays H.264, ProRes or DNxHD files onto SD cards, UHS-II cards or external USB disks in SD and HD formats up to 1080p60. The larger HD Plus model adds better transport controls, front-panel headphone and speaker, 6G-SDI with fill and key out, SDI monitoring and records H.264 up to 1080p60 or ProRes and DNxHD up to 2160p30. The full rack HD Pro model is the same as the HD Plus model but adds 2 SSD slots and a machined metal search dial with a clutch. The 4K Pro model records H.264, H.265, ProRes or DNx in SD, HD and Ultra HD in standards up to 2160p60.
HyperDeck Studio features traditional deck style transport controls, including a search dial for jog, shuttle and scroll. The LCD includes monitoring for video, plus audio level meters, selectable between technically accurate VU or PPM ballistics.
All HyperDeck Studio models support recording to common SD cards and UHS-II cards. However, the Pro models also add two SSD slots so customers can use two different types of media. Plus, customers can even record to external USB disks. With H.265, customers can record up to 58 hours in 2160p60 Ultra HD or up to 157 hours of H.264 recording in 1080p59.94 on a 1 TB card.
All HyperDeck Studio models feature dual media slots for non-stop recording. HyperDeck supports the most popular codecs in use today. All models include DNx and ProRes file formats. However, all models also include H.264 in quality levels up to full 10 bit 4:2:2 when recording in NTSC, PAL, 720p, 1080p and true 1080i interlaced formats. While the 4K model adds H.265 when recording in Ultra HD. That means customers get tight 60:1 to 285:1 compression ratios for very small files at full broadcast quality. Plus customers can choose uncompressed PCM audio, or even AAC audio when uploading files to YouTube. All models support both ExFAT and HFS+ disk formats.
Depending on the model HyperDeck Studio features a wide range of video and audio connections such as 3G-SDI, 6G-SDI or 12G-SDI. All models include HDMI for connecting to televisions and projectors. The Pro and Plus models include two SDI outputs so customers can play ProRes 4444 files, allowing simultaneous fill and key output for keying in live production switchers. The 4K model has 10G Ethernet for extremely fast network file copying.
With multi-rate SDI, customers get support for the most popular video standards. SD formats include NTSC and PAL. 720p HD standards include 720p50 and 720p59.94p. 1080i HD interlaced formats include 1080i50 and 1080i59.94. 1080p HD formats include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck can even support 1080 PsF formats. On the 4K model, Ultra HD formats up to 2160p60 are supported. Plus the 4K model supports 2K and 4K DCI rates up to 30p.
For compatibility with a wide range of computer software, HyperDeck Studio features webcam support using the USB connection. HyperDeck Studio’s USB webcam feature works with any video software including Zoom, Microsoft Teams and Skype, or get live streaming with Open Broadcaster, XSplit Broadcaster and more.
HyperDeck Studio Plus and Pro models allow customers to load a 3D LUT into the monitoring output to add looks or to convert film to video gamma.
It includes professional multi-channel SDI audio for recording up to 16 channels. Customers get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian languages. There’s extra space on the SDI monitoring status overlay, which allows the audio meter display to show the number of channels customers have enabled all at the same time.
HyperDeck Studio records files that are compatible with virtually all post-production software. Plus if customers record in H.264, they can upload files from HyperDeck Studio direct to streaming services such as YouTube, Facebook, Vimeo, Twitter and more.
HyperDeck Studio HD Mini model includes most features miniaturised into a five-inch wide compact design that’s only one-third of a rack unit wide.
Speaking about the new model, Grant Petty, CEO of Blackmagic Design, said: “We think the new HyperDeck Studio models will offer customers a much better user experience, along with a more consistent feature set between models. Even the lowest cost model is extremely powerful, as HyperDeck Studio HD Mini still has reference and timecode generators, H.264, ProRes and DNx recording, dual media slots, recording to USB disks and more. It’s very exciting.”
